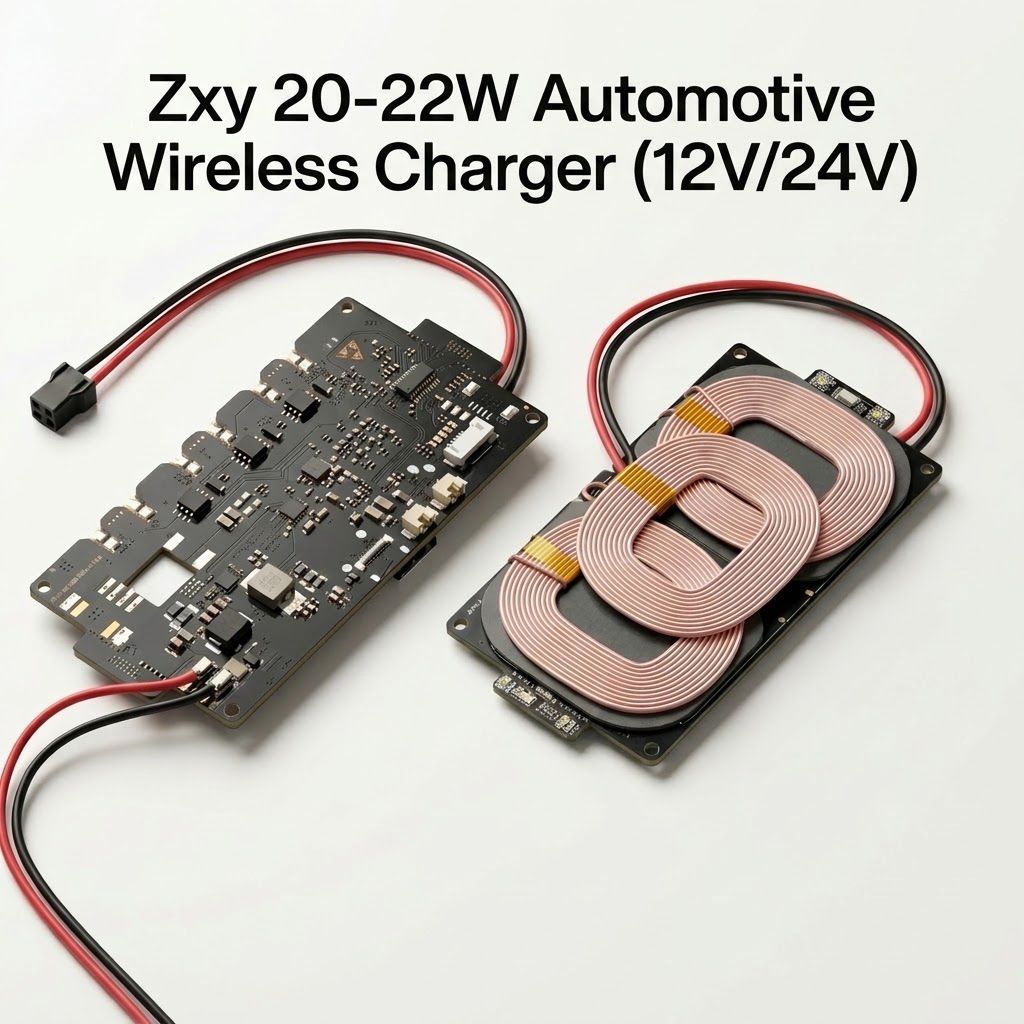

ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板
ZXY 20W/22W三线圈无线充电发射模块，支持12V/24V供电，由三线圈组件与PCBA控制板组成，适合嵌入式无线充电设备。
- Input voltage
- 12V DC (passenger vehicles) / 24V DC (commercial vehicles and equipment)
- Output power class
- 20-22W, configurable per project
- Transmitting coil array
- 3-coil (tri-coil) overlapping array integrated on the PCBA
产品详情
产品概述
ZXY 20W/22W三线圈无线充电发射模块，支持12V/24V供电，由三线圈组件与PCBA控制板组成，适合嵌入式无线充电设备。
源站产品资料
Application Specifications
| Parameter | Specification |
| Input voltage | 12V DC (passenger vehicles) / 24V DC (commercial vehicles and equipment) |
| Output power class | 20-22W, configurable per project |
| Transmitting coil array | 3-coil (tri-coil) overlapping array integrated on the PCBA |

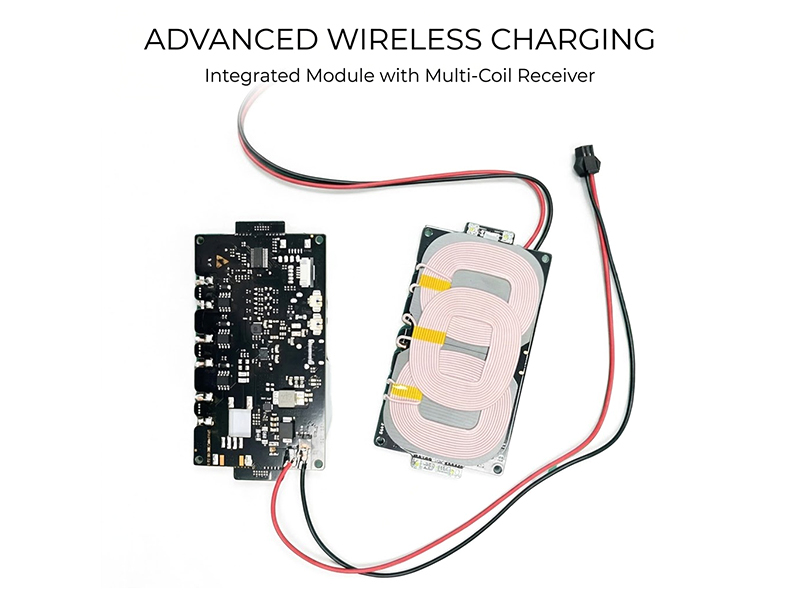

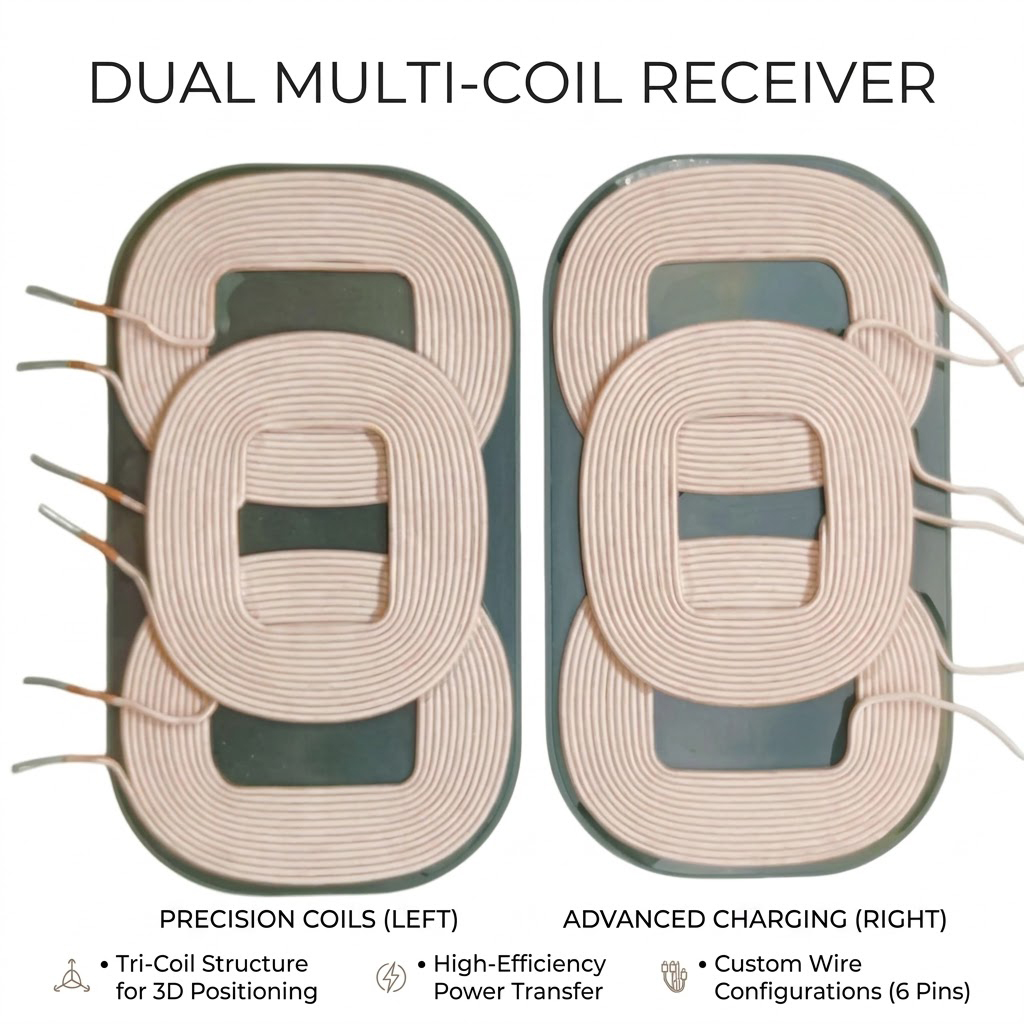

| Matched receiver (optional) | Multi-coil receiver board with ferrite base shield, supplied to match the transmitter |

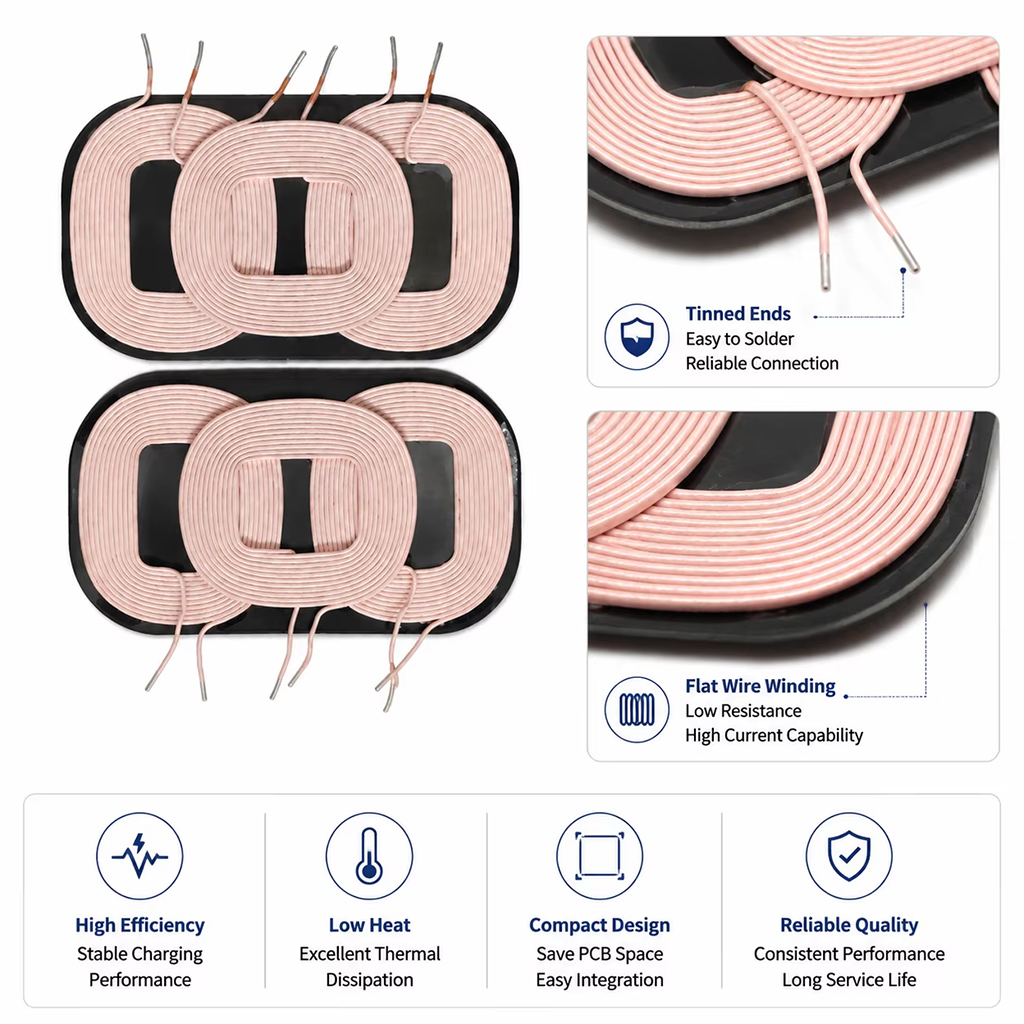

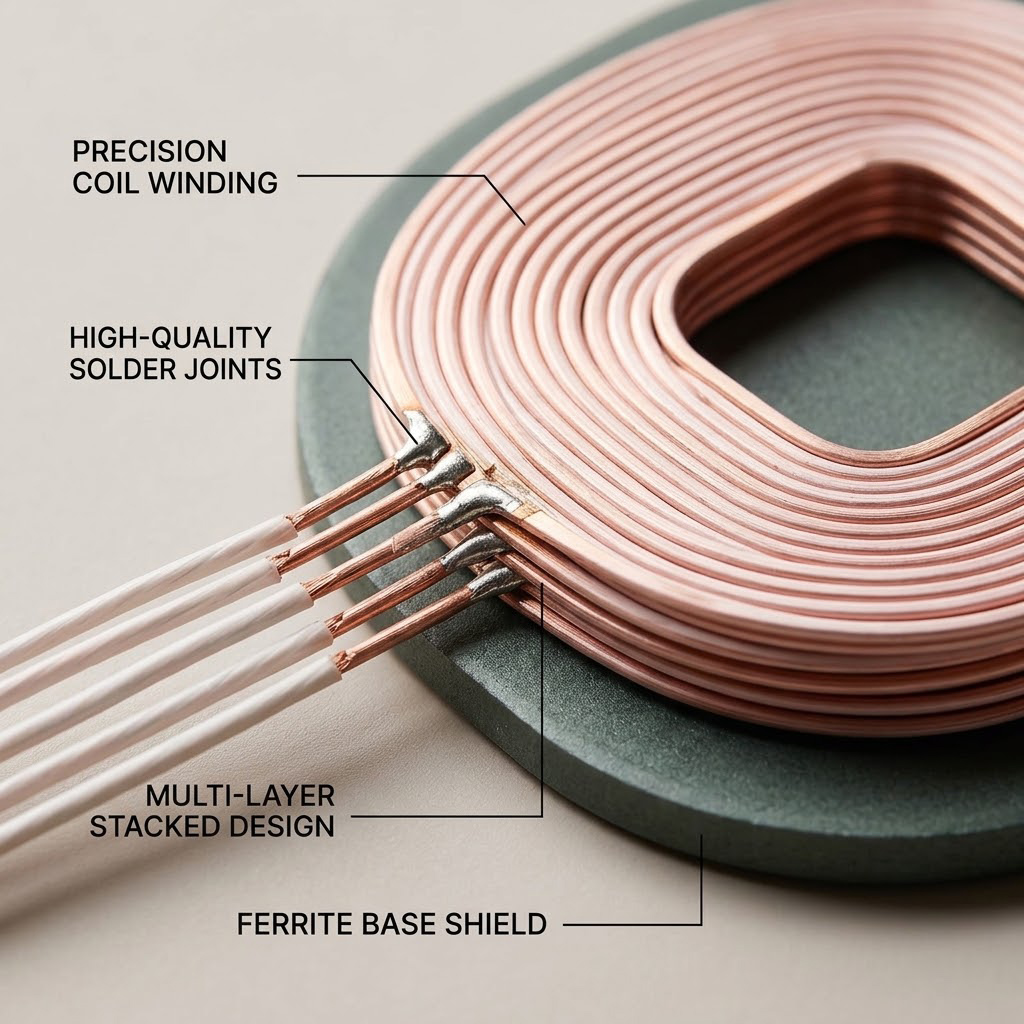

| Coil winding wire | Flat (rectangular-section) copper wire, multi-layer stacked winding |
| Shielding | Ferrite base shield under the coil array |

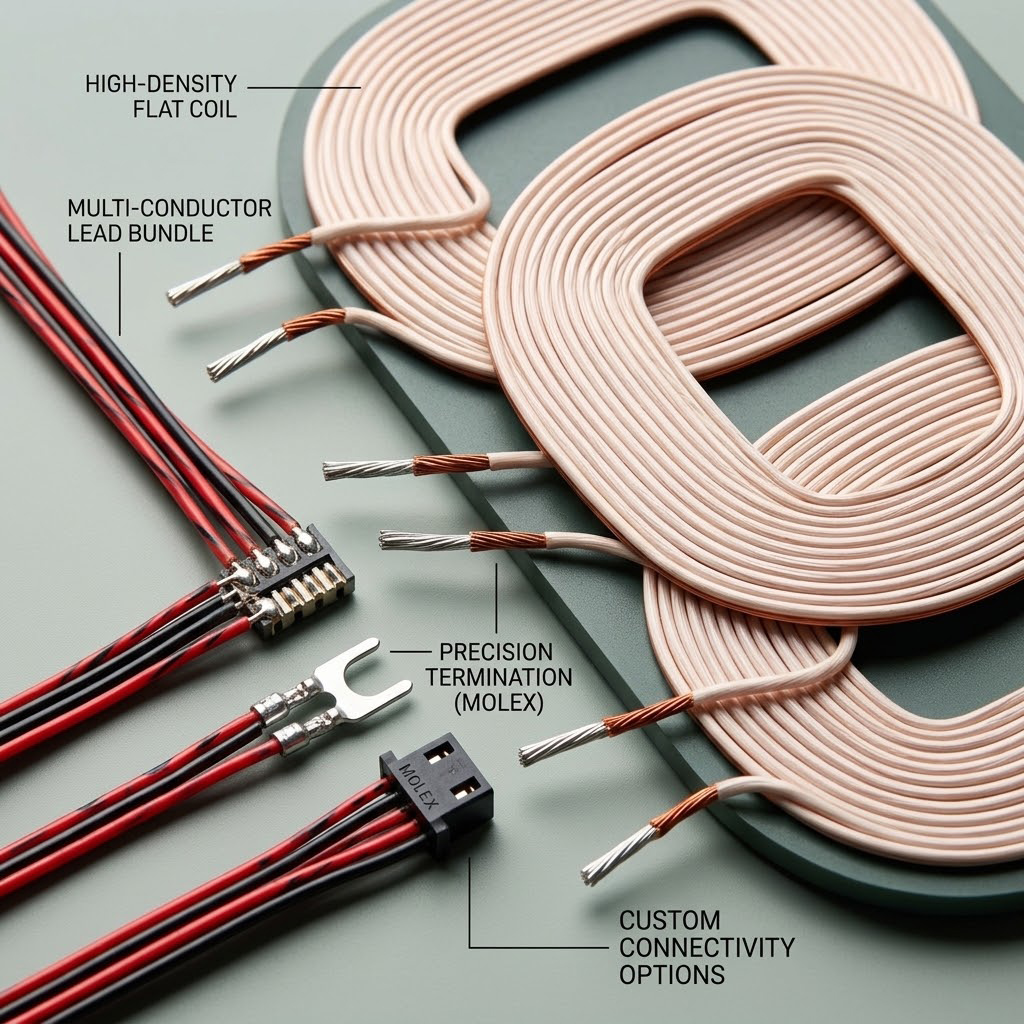

| Connection | Multi-conductor lead bundle; pre-tinned coil lead ends for direct soldering |
| Pin configuration | Configurable; a 6-pin configuration is available |
| Charging position | Free positioning anywhere on the multi-device charging area; no precise alignment required |
| Mounting | PCBA module mounted behind a non-metallic panel or trim surface |
Product Features
● Efficient charging: three coils work together to produce a more complex and uniform magnetic field, effectively improving the charging efficiency.
● Fault-tolerant: multiple coils can be adapted to different charging distances and angles, the device being charged does not need to be accurately aligned with the charging area
● High degree of integration: integrated on the PCBA circuit board, closely matched with other circuit components.
● Good compatibility: As part of the PCBA circuit board, it is easy to integrate with the charging system of various electronic devices.
● Optimize the use of space: the integration of three coils on the circuit board can achieve a more powerful charging function in a limited space.
Product Advantages
● Free-Position Charging: Three-coil design provides a wide charging area without precise phone alignment.
● Stable & Efficient Charging: Flat copper wire, multi-layer winding and ferrite shielding improve power transfer and reduce energy loss.
● Low Heat & Reliable Performance: Low-resistance coils and magnetic shielding help reduce heat, ideal for enclosed installation in cars and furniture.
● Easy Integration: Coil array, drive circuit and control are integrated on one PCBA, with a plug-in connector for quick installation.
● 12V & 24V Compatible: Supports both 12V and 24V DC systems for passenger cars, trucks, buses and other vehicles.
● B2B Customization: Custom coil design, wire, connector, lead length and power output available based on project requirements.
● Quality & Compliance: RoHS compliant, CE certified, and manufactured under an ISO 9001:2015 quality management system.
Application scenario
Application
Automotive
Cars, trucks, buses, vans and retrofit charging kits.
Hospitality & Public Spaces
Cafes, restaurants, hotels, airports, libraries and waiting areas.

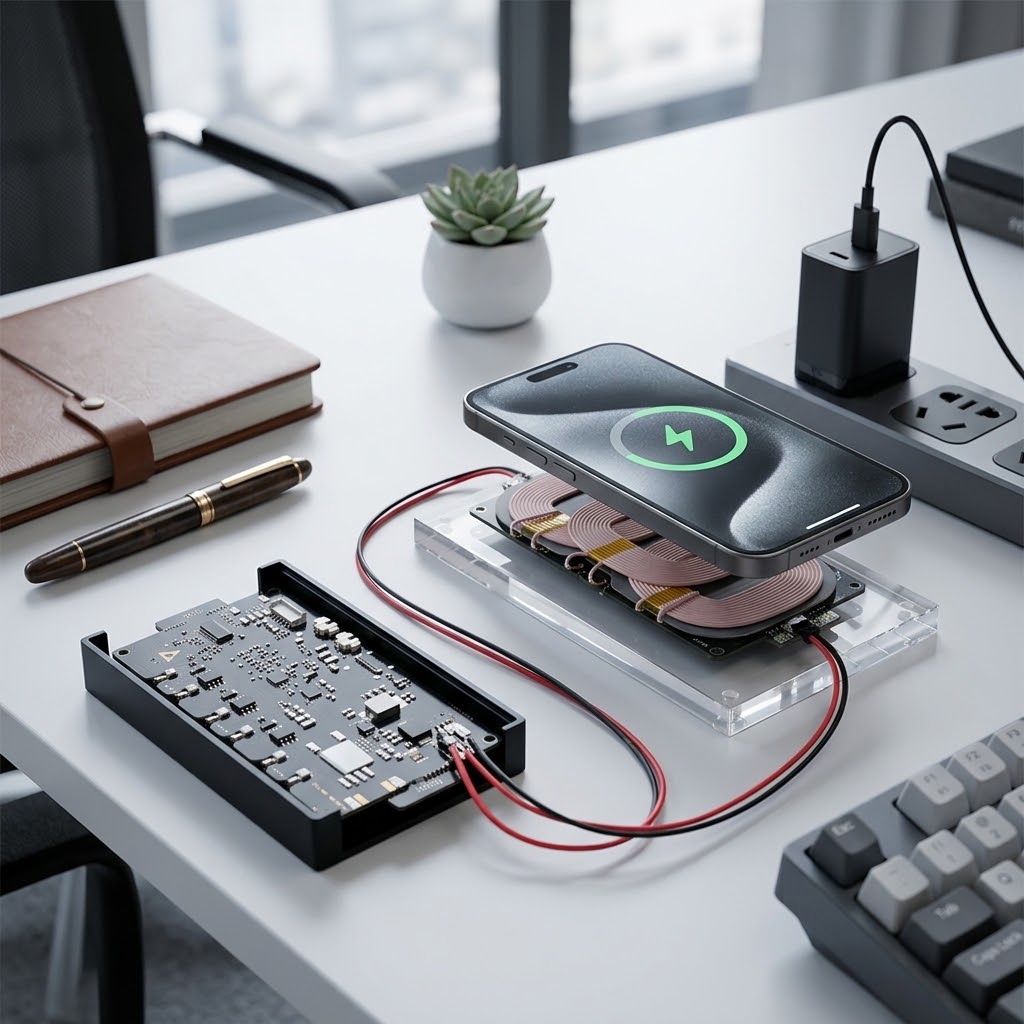

Office & Furniture
Desks, conference tables, sofas, bedside tables and smart furniture.
Appliances & Equipment
Docking stations, desktop organizers and other built-in charging devices.
B2B & OEM/ODM
Wholesale supply and customized solutions based on drawings.
Product Details Showcase

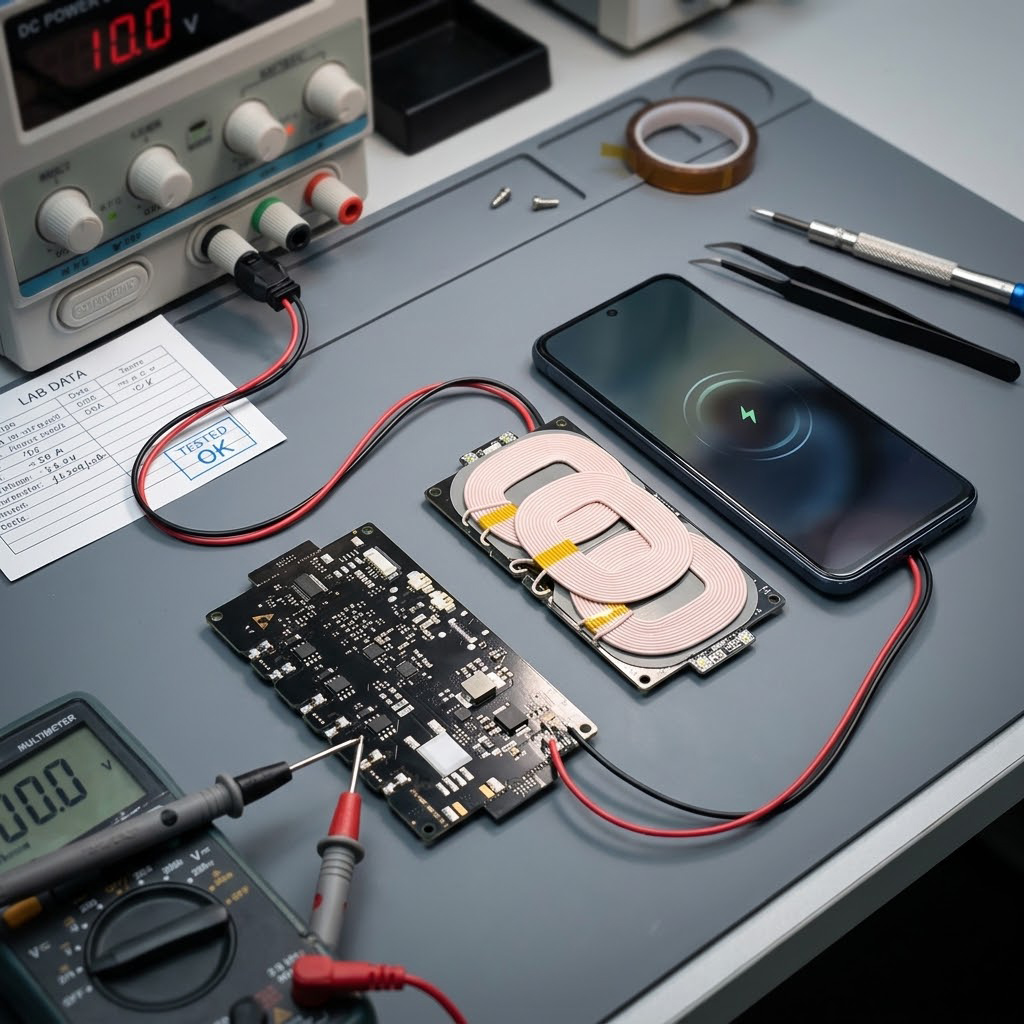

Quality & Testing Assurance
规格参数
| Input voltage | 12V DC (passenger vehicles) / 24V DC (commercial vehicles and equipment) |
|---|---|
| Output power class | 20-22W, configurable per project |
| Transmitting coil array | 3-coil (tri-coil) overlapping array integrated on the PCBA |
| Matched receiver (optional) | Multi-coil receiver board with ferrite base shield, supplied to match the transmitter |
| Coil winding wire | Flat (rectangular-section) copper wire, multi-layer stacked winding |
| Shielding | Ferrite base shield under the coil array |
| Connection | Multi-conductor lead bundle; pre-tinned coil lead ends for direct soldering |
| Pin configuration | Configurable; a 6-pin configuration is available |
| Charging position | Free positioning anywhere on the multi-device charging area; no precise alignment required |
| Mounting | PCBA module mounted behind a non-metallic panel or trim surface |
以上仅展示已提供的参数。未列出的电气性能、测试条件、公差及定制选项，请联系工程师确认，以最终规格书为准。

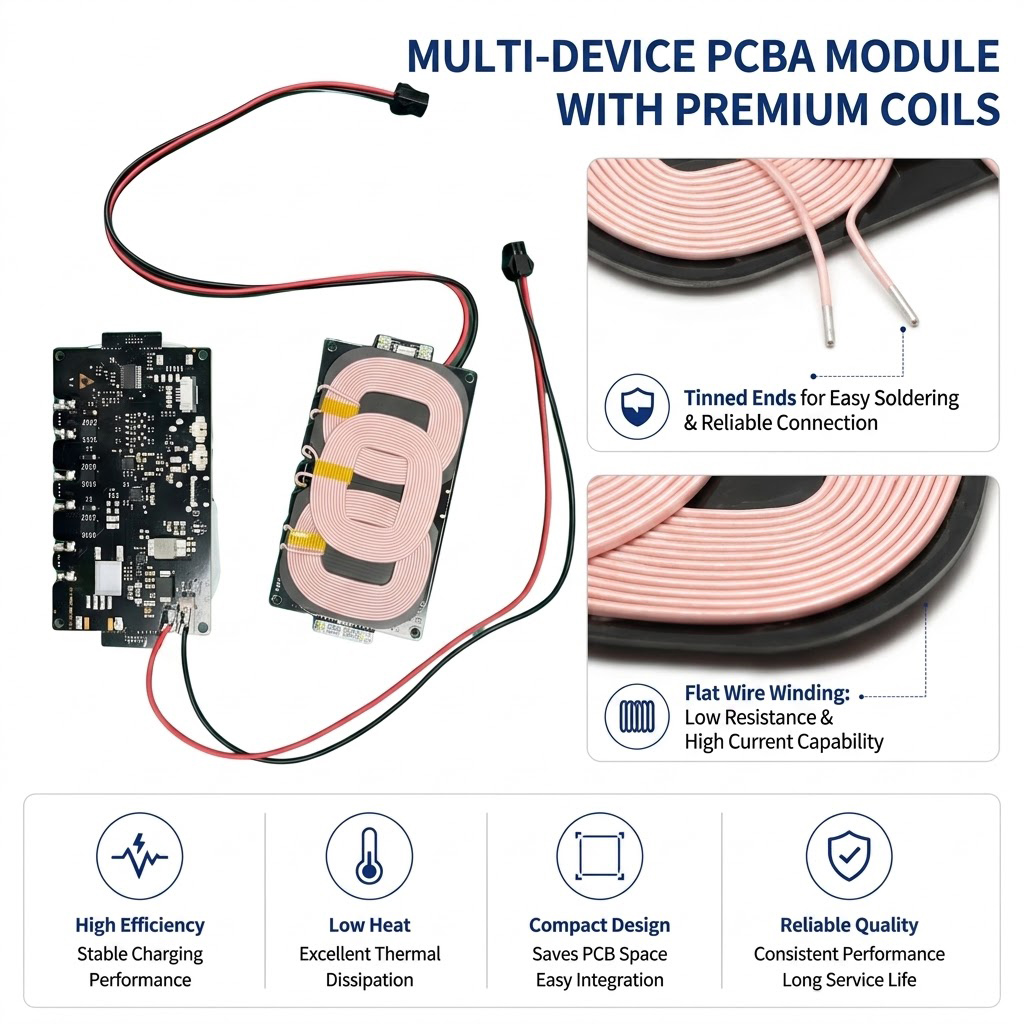

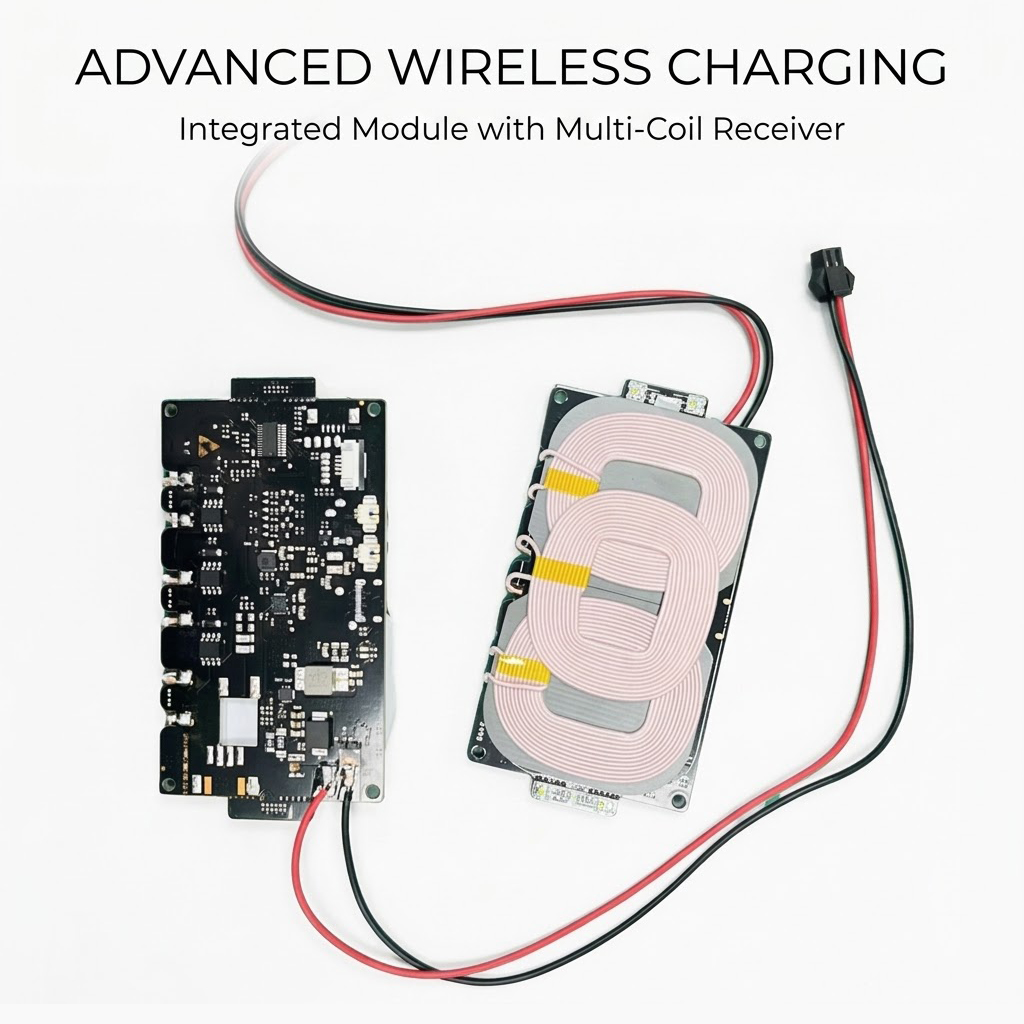

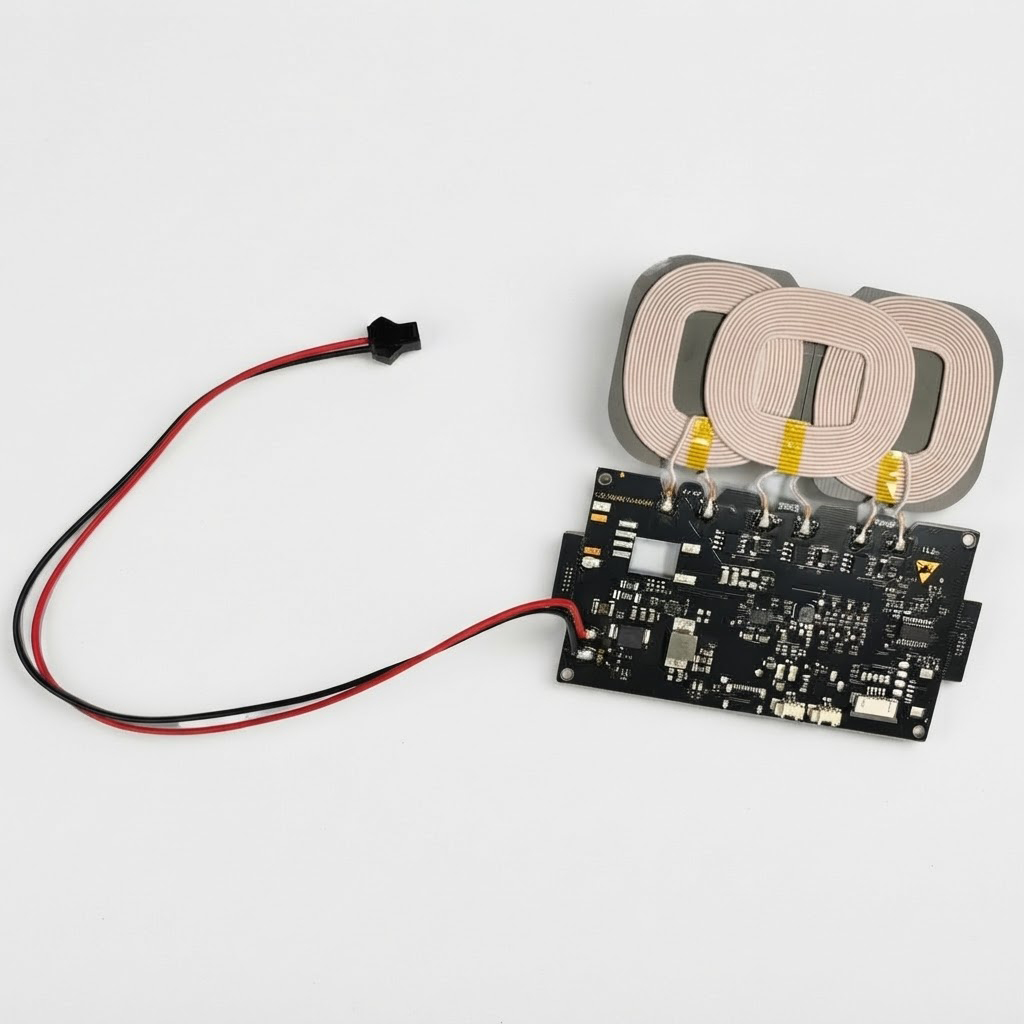

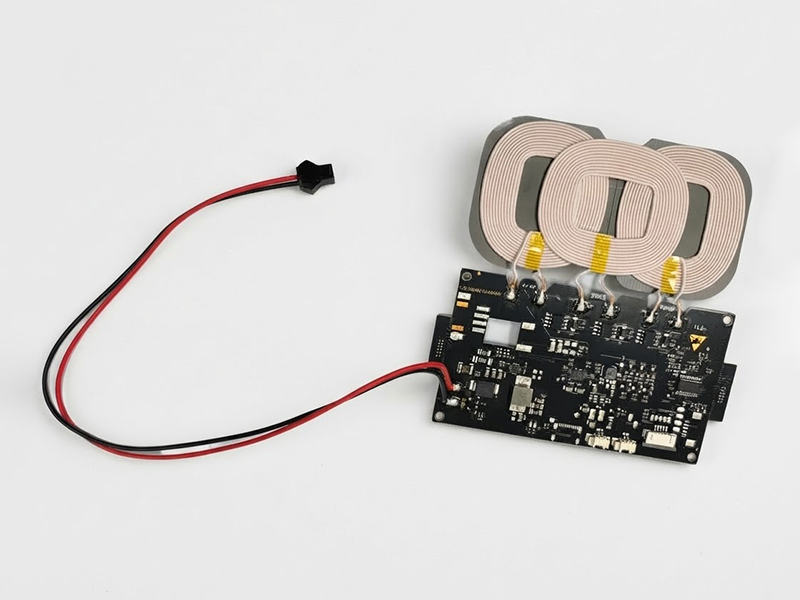

产品图片与尺寸图
以下为已有产品图片及图纸，点击可查看原图。定制产品请以双方确认的规格书和图纸为准。
资料下载
该型号暂未上传可下载的规格书，可通过下方询盘索取参数表、尺寸图或样品资料。
选型与定制需求
为便于确认适用型号与规格，请尽量提供以下信息：
- 应用设备、用途、工作环境与温度范围。
- 按产品类型提供所需电感量、匝比或阻抗、工作频率、电压、电流及绝缘要求。
- 尺寸限制、安装方式、引脚间距，以及现有图纸或参考样品。
- 样品数量、预计批量与期望交期。
常见采购问题
关于 ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板 的常见采购问题。
ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板 是什么？
ZXY 20W/22W三线圈无线充电发射模块，支持12V/24V供电，由三线圈组件与PCBA控制板组成，适合嵌入式无线充电设备。
ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板 可以按我们的规格定制吗？
可以。深圳市志翔源电子有限公司 提供 OEM/ODM 服务，电感量、匝比、额定电流、磁芯材质、尺寸与引脚方式均可按您的图纸或样品定制。
ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板 的起订量与交期是多少？
起订量根据具体型号与订单数量协商确定。常规品交期 1-3 周，定制品 2-4 周，欢迎联系销售团队获取准确报价。
是否提供 ZXY 20W/22W三线圈无线充电模块，12V/24V输入PCBA控制板 样品？
提供。批量下单前可先申请样品评估，请将您的需求与收件信息发送给我们。
这款产品的型号是什么？
型号为 ZXY 20W/22W 3-Coil PCBA。OEM 订单可指定自定义型号。
