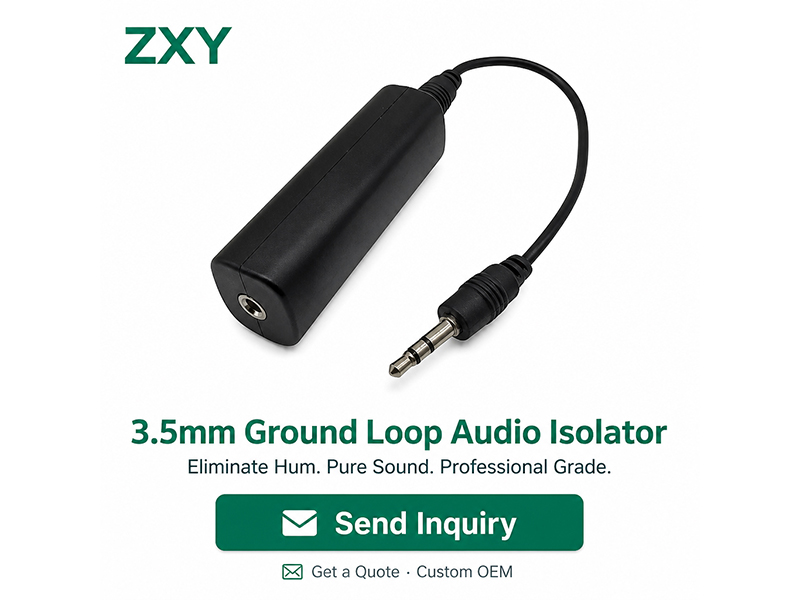

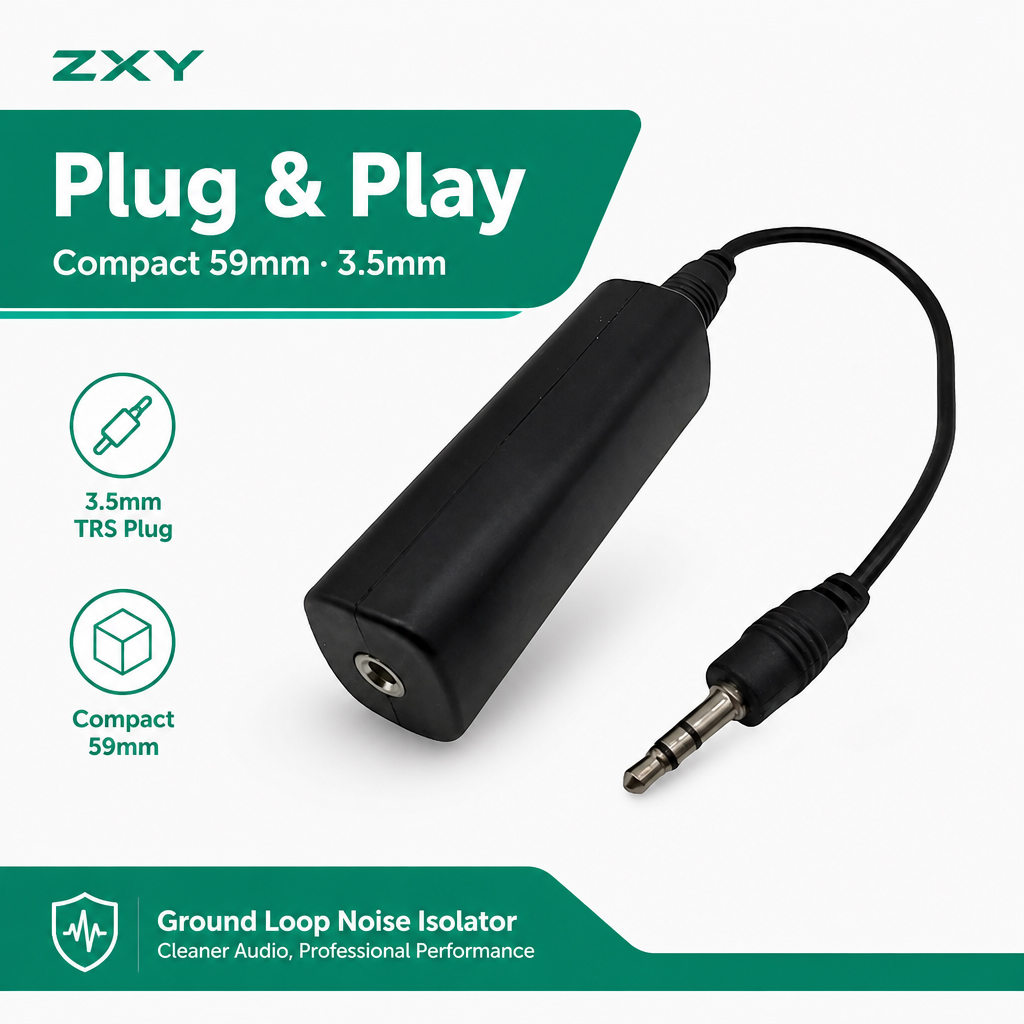

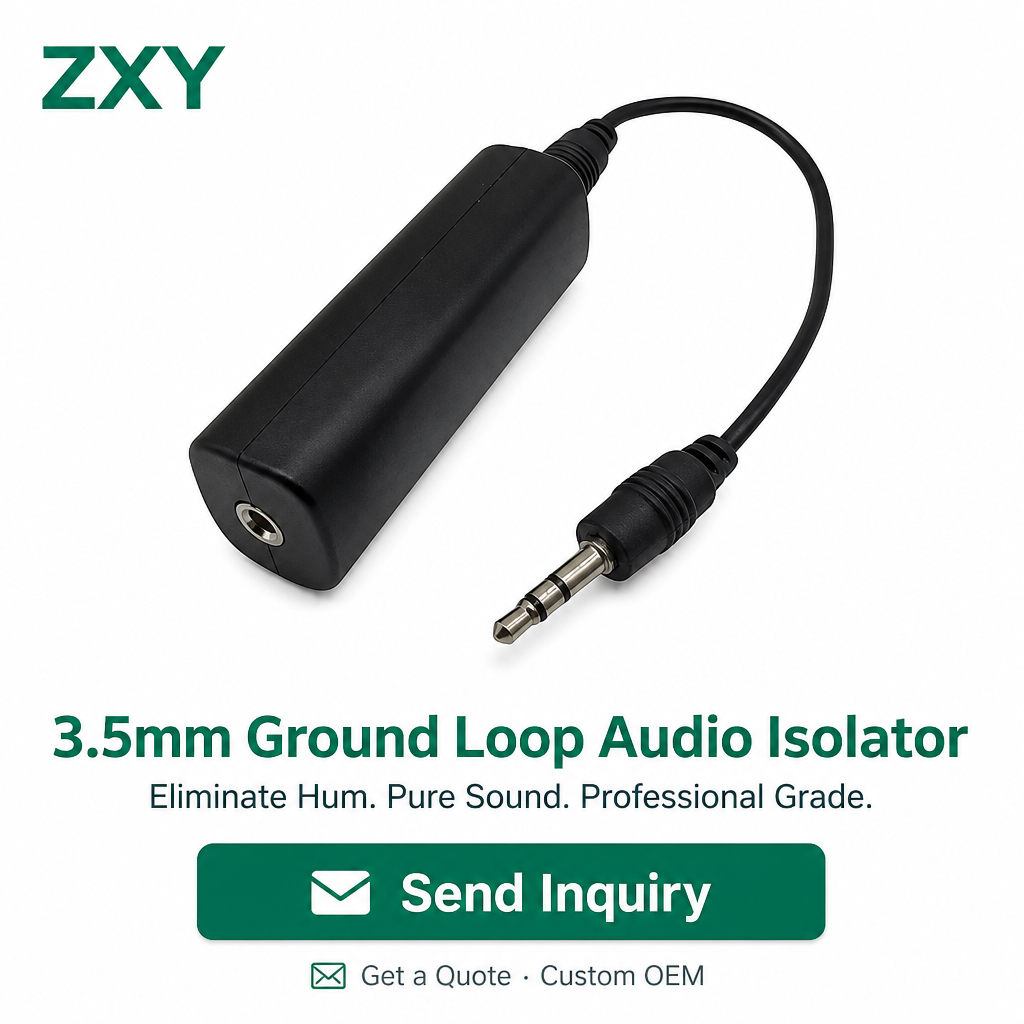

汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器
无源音频地环路噪声隔离器，利用音频隔离变压器切断地环路，适用于汽车音响、家庭立体声及AUX音频系统的嗡声抑制。
- Application Category
- Target Scenarios
- Car Audio & In-Car Entertainment
- AUX-in head units, aftermarket radios and car amplifiers fed
- Home Stereo & Hi-Fi
- Amplifiers, AV receivers, active
产品详情
产品概述
无源音频地环路噪声隔离器，利用音频隔离变压器切断地环路，适用于汽车音响、家庭立体声及AUX音频系统的嗡声抑制。
源站产品资料
Application Specifications
A ground loop appears whenever two devices powered from separate supplies are joined by a signal cable.
| Application Category | Target Scenarios | Key Function & Benefit |

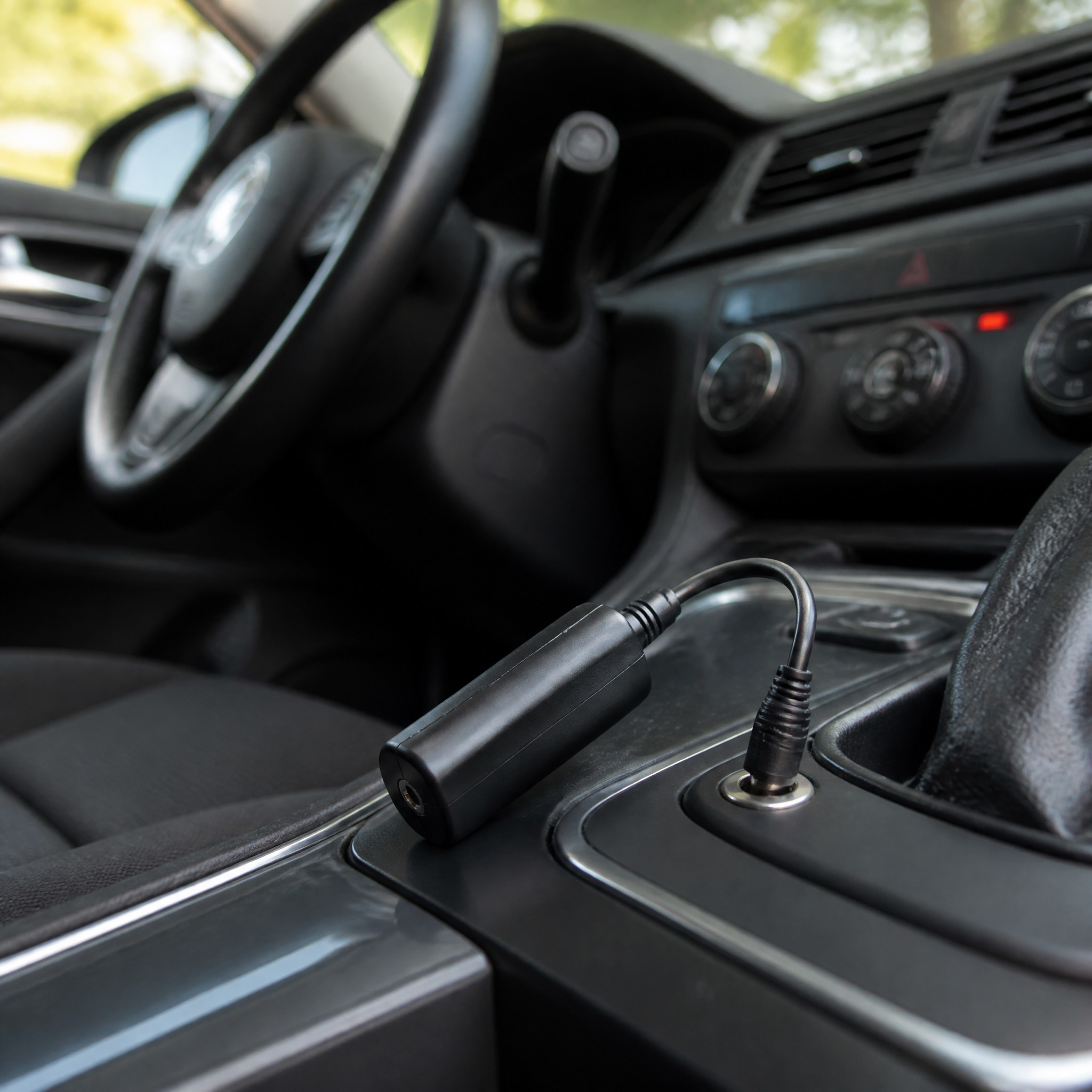

| Car Audio & In-Car Entertainment | AUX-in head units, aftermarket radios and car amplifiers fed | Breaks the ground loop formed between the vehicle electrical system and the portable device |

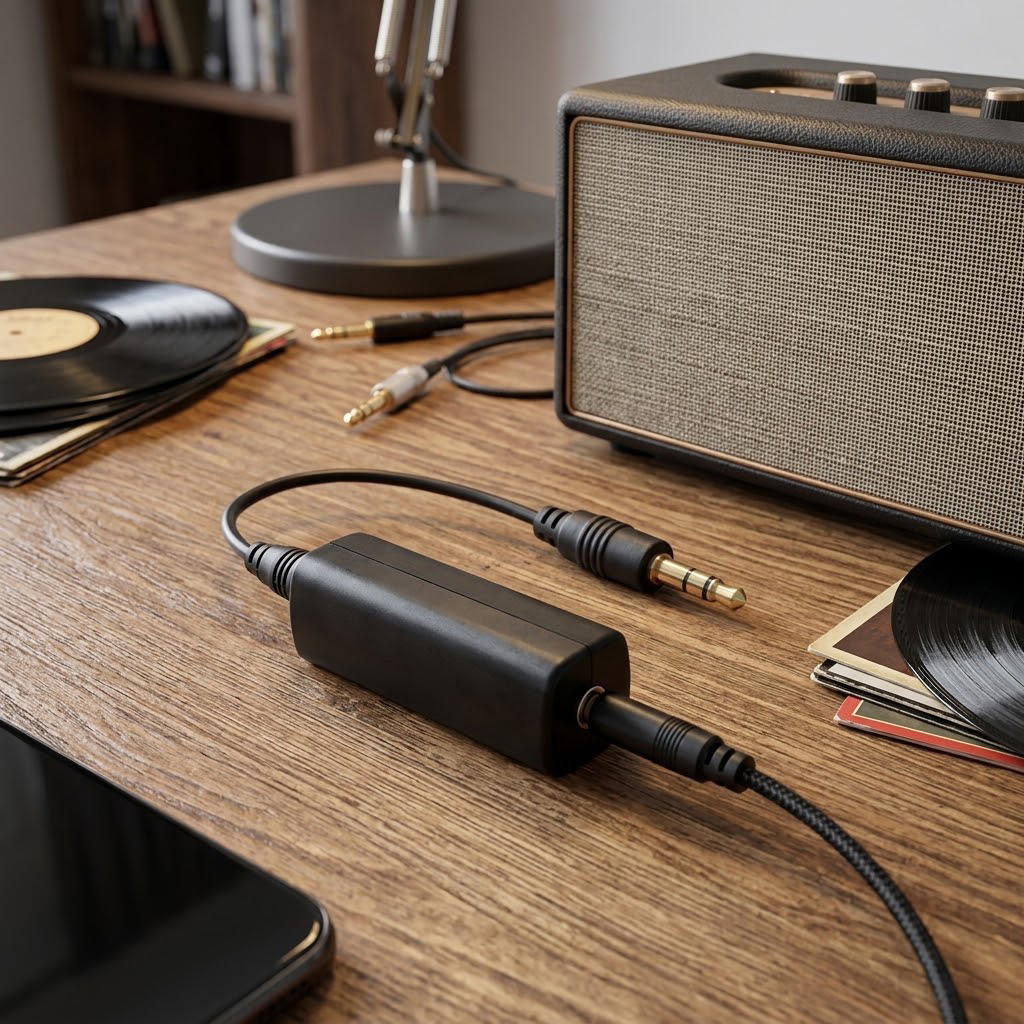

| Home Stereo & Hi-Fi | Amplifiers, AV receivers, active | Eliminates 50/60 Hz mains hum caused by different ground potentials |
| Portable & Mobile Devices | Smartphones, tablets, MP3 players, portable DAC | Noise-free playback from battery-powered devices |
| Desktop, Streaming & Content Creation | PC or laptop audio feeding monitor speakers | Removes the ground noise that appears when computer and speakers |
| Commercial & Institutional Audio | Retail and showroom background music players | Keeps program audio clean and intelligible |
Product Features
● Eliminates ground-loop induced hum and buzzing noise while preserving original stereo audio quality
● Shielded casing structure resists external electromagnetic interference
● Professional built-in audio isolation transformer delivers excellent audio-isolation performance
● Plug-and-play design requires no extra power supply or drivers for quick installation
● Robust metal-compatible shell structure ensures durability
● Supports stereo XLR audio signal transmission with wide compatibility
Product Advantages
● Removes ground-loop hum at its source. The built-in 1:1 audio isolation transformer breaks the direct electrical connection between the two devices while still passing the audio signal.
● Keeps the original stereo sound. Isolation is magnetic rather than electronic - no EQ curve, no noise gate, no added hiss.
● Fully passive - no power, no battery, no driver. The unit draws nothing from the source device or from the vehicle electrical system.

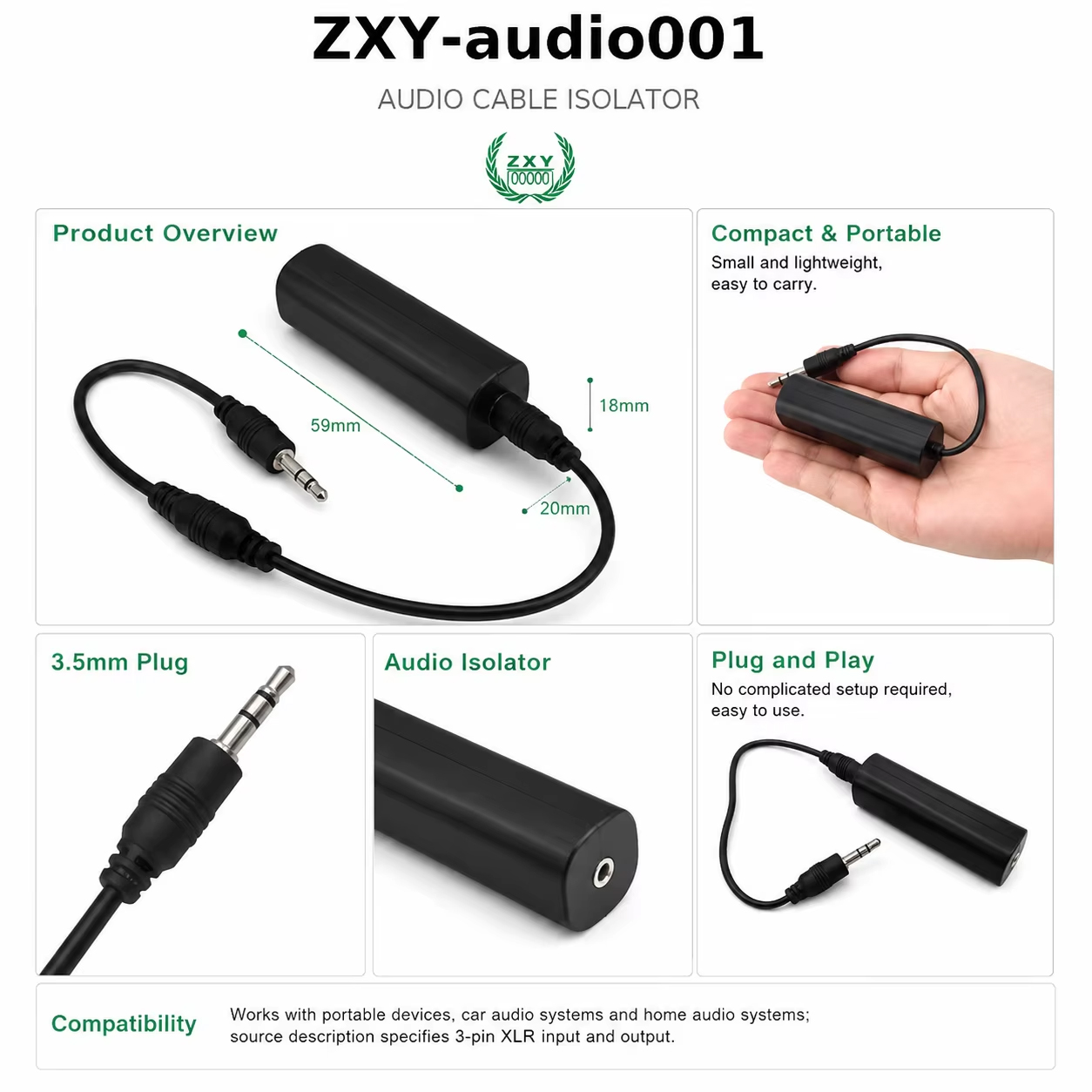

● Compact inline body that stays installed. A 59 x 20 x 18 mm molded housing with strain-relieved cable entries sits in line with the existing cable and disappears behind a dashboard or under a desk.

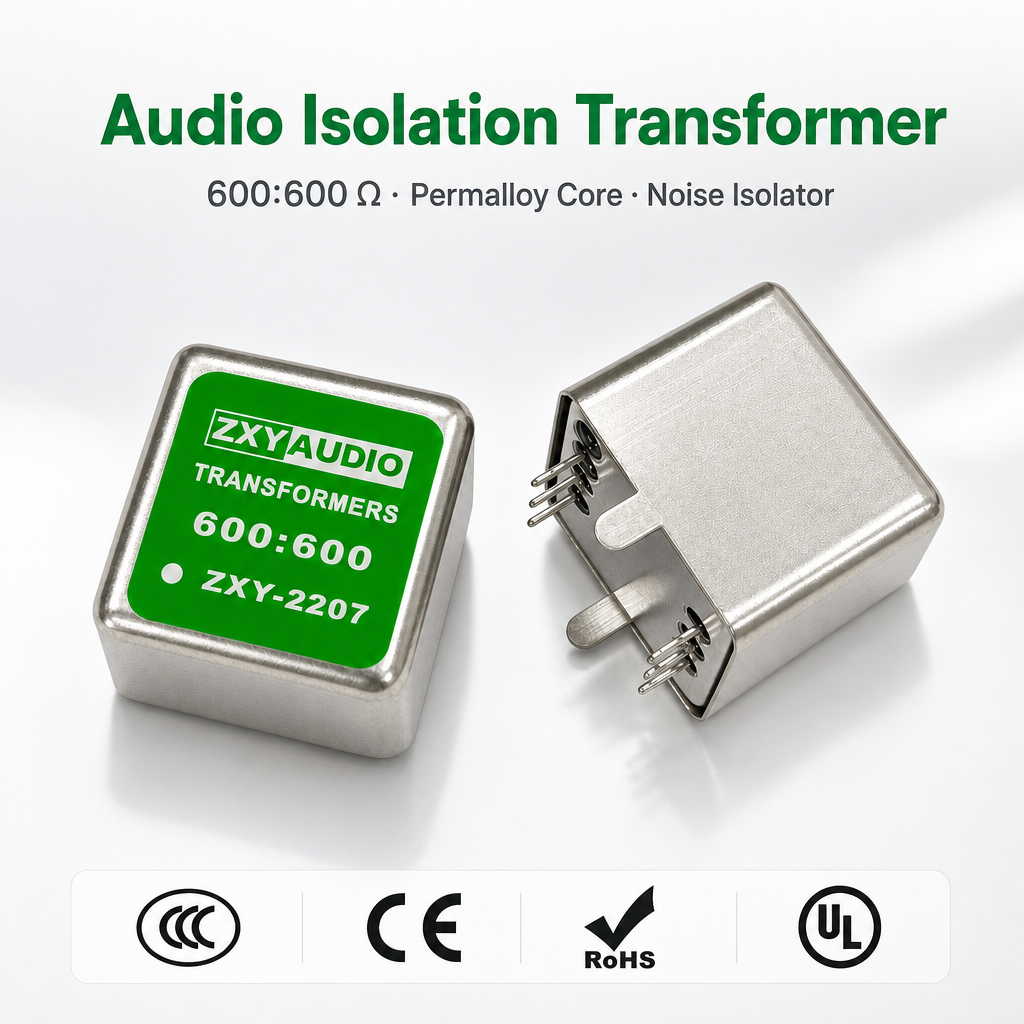

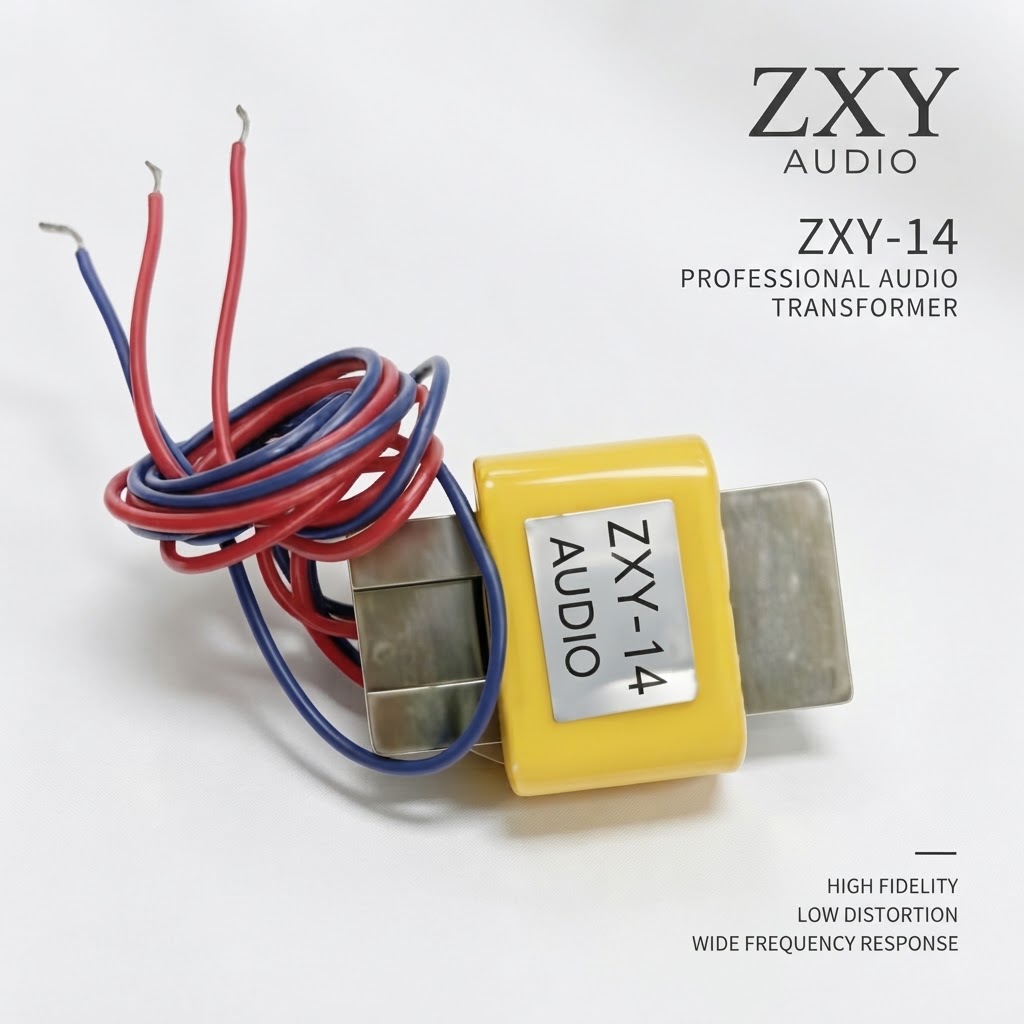

● Isolation transformer wound in-house by an ISO 9001 factory. The transformer stage is produced on the same lines as ZXY's audio transformer series rather than bought in as a commodity part.

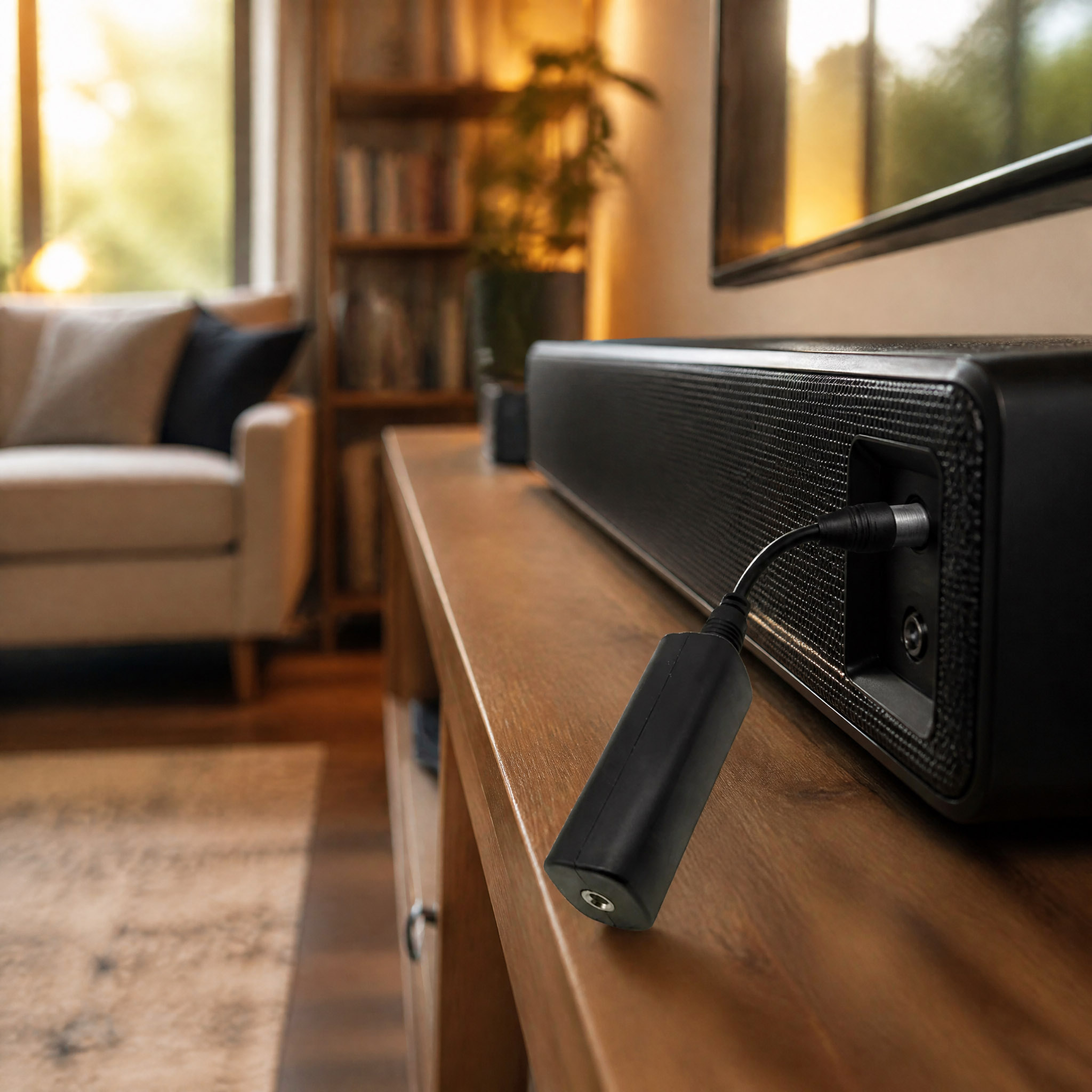

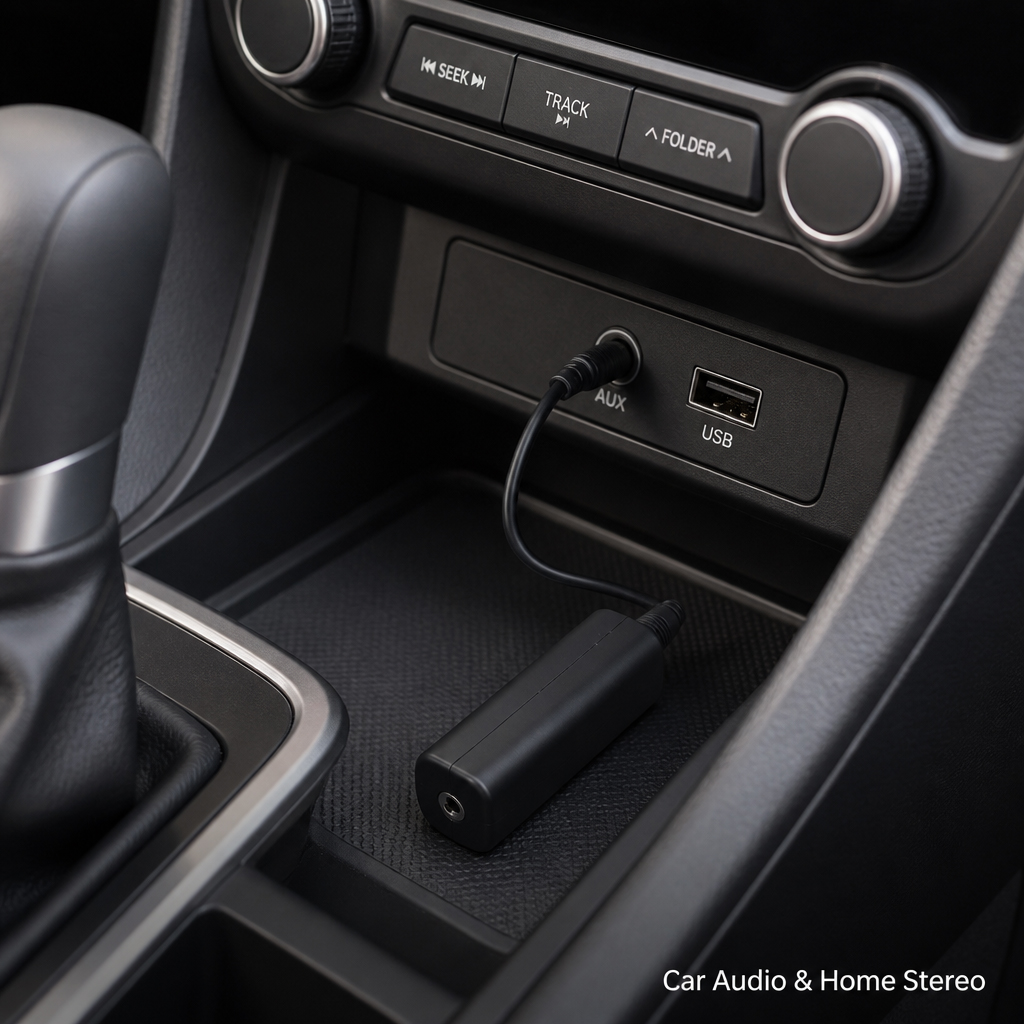

Application scenario
Application
Isolation principle
A passive 1:1 audio isolation transformer transfers the audio signal magnetically across the isolation barrier.
Compatible equipment
Car stereos, phones, tablets, MP3 players, Bluetooth receivers, amplifiers, speakers, soundbars, mixers, and other devices.
Installation & operating conditions
Passive construction generates no heat and needs no ventilation, so the unit can run continuously in a vehicle cabin, a home listening room, an office desk or a portable rig.
Mechanical construction

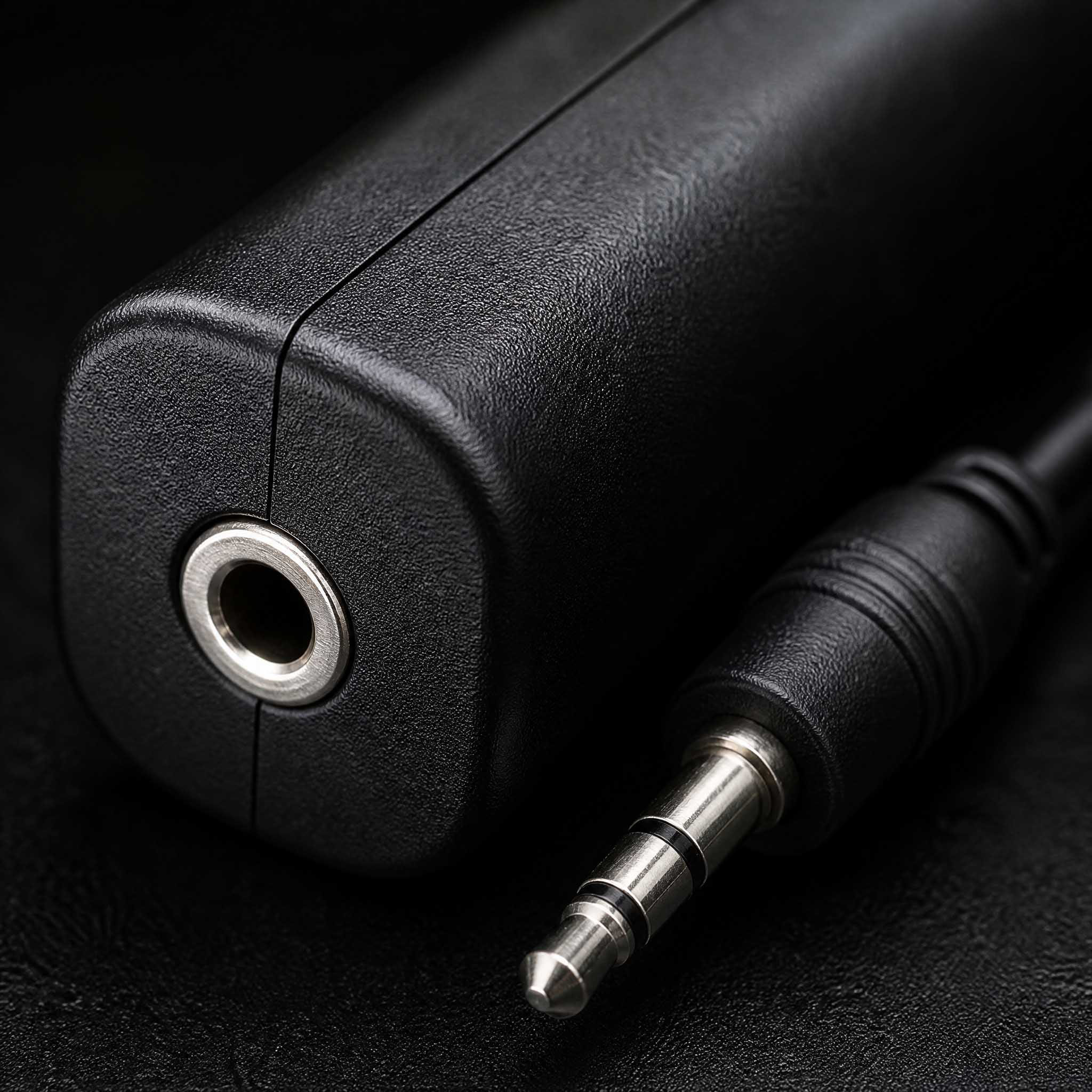

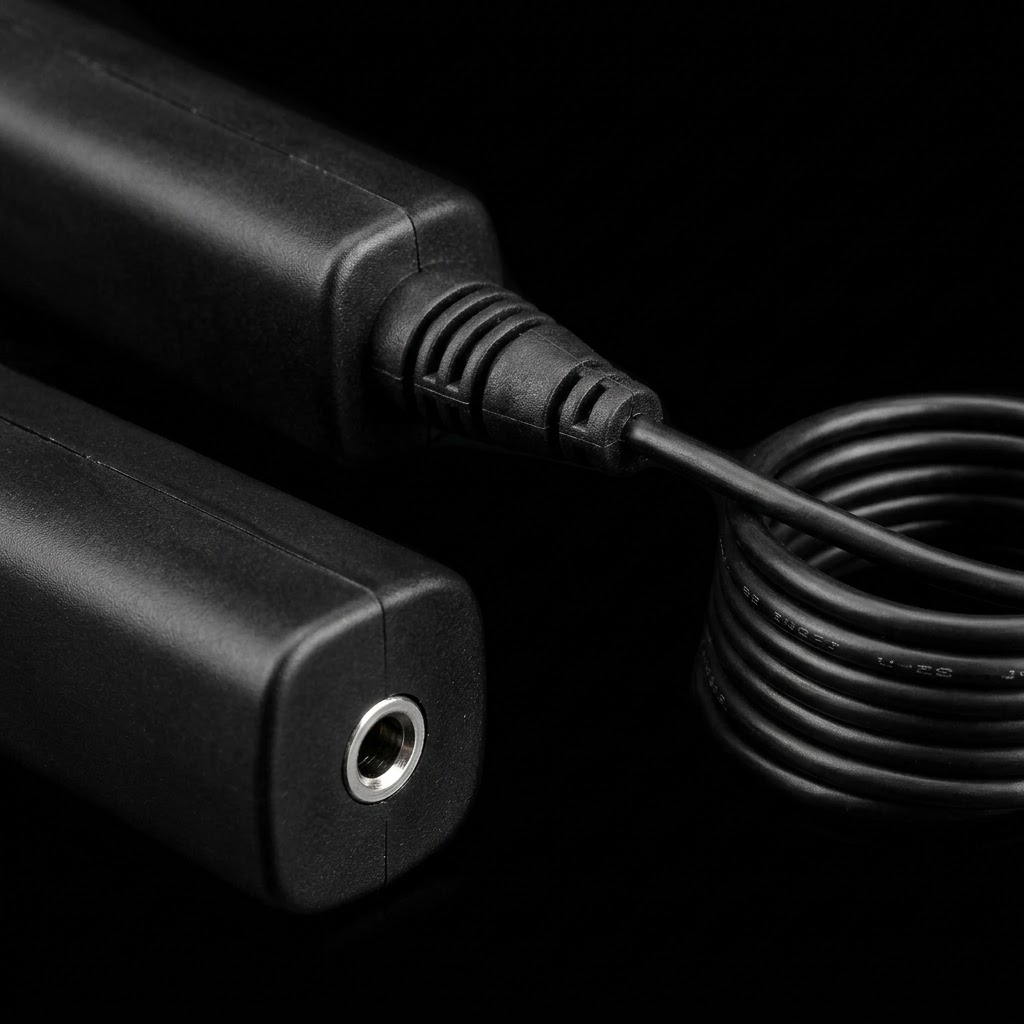

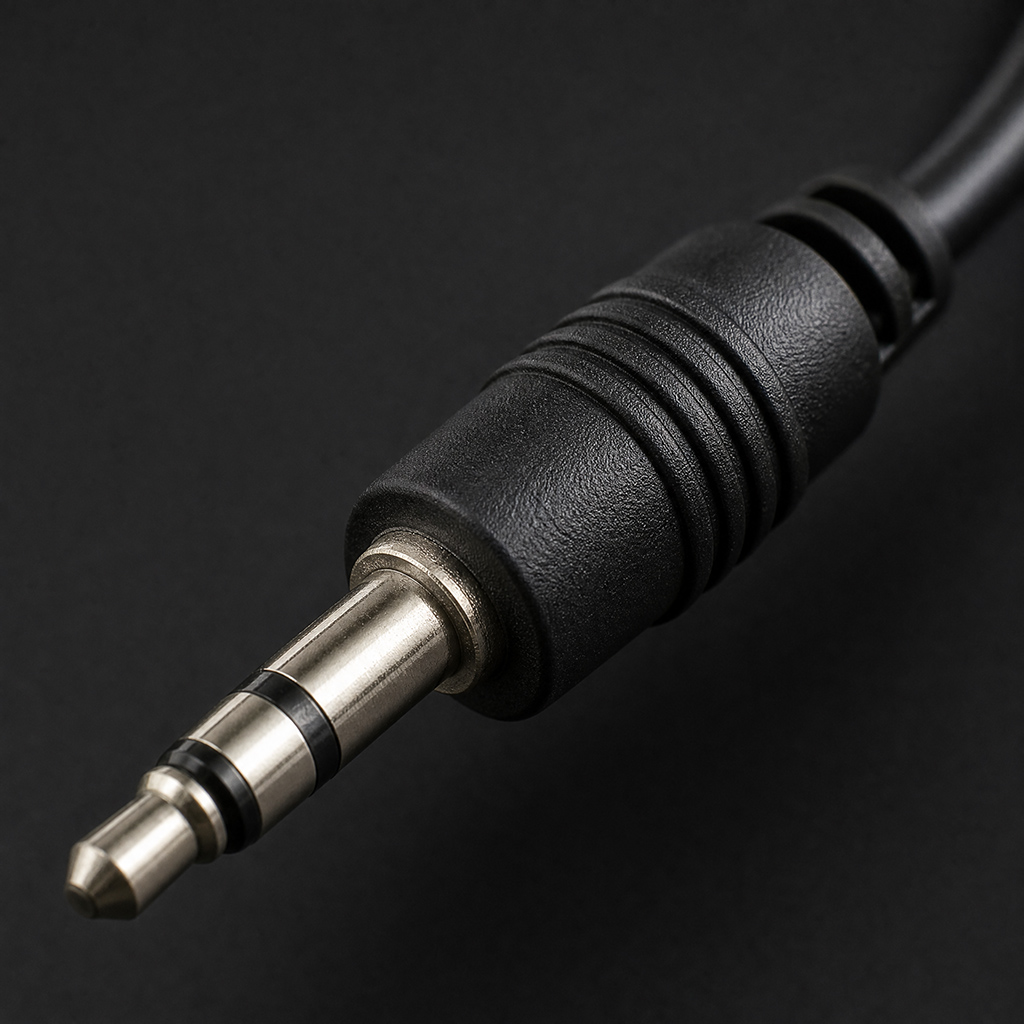

Molded black housing with a metal-collar output jack and molded strain relief at both the housing entry and the plug.

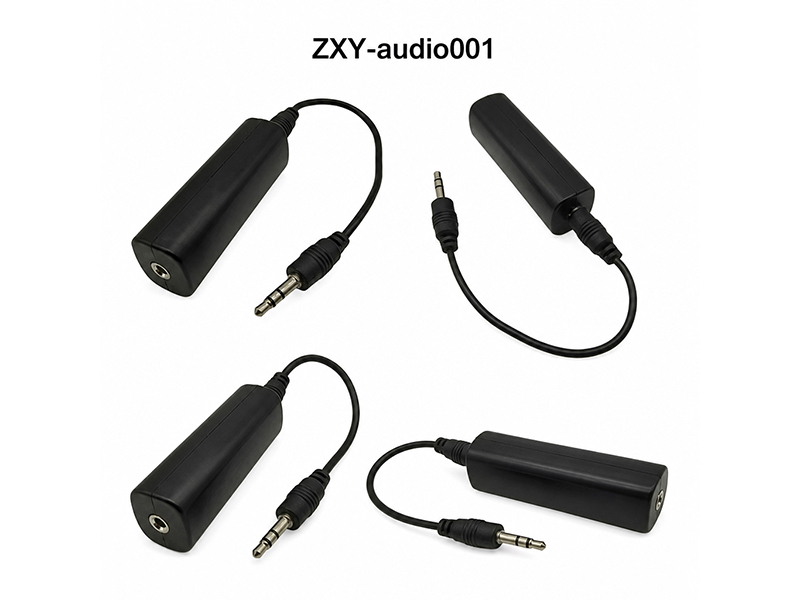

Product Details Showcase
Quality & Testing Assurance

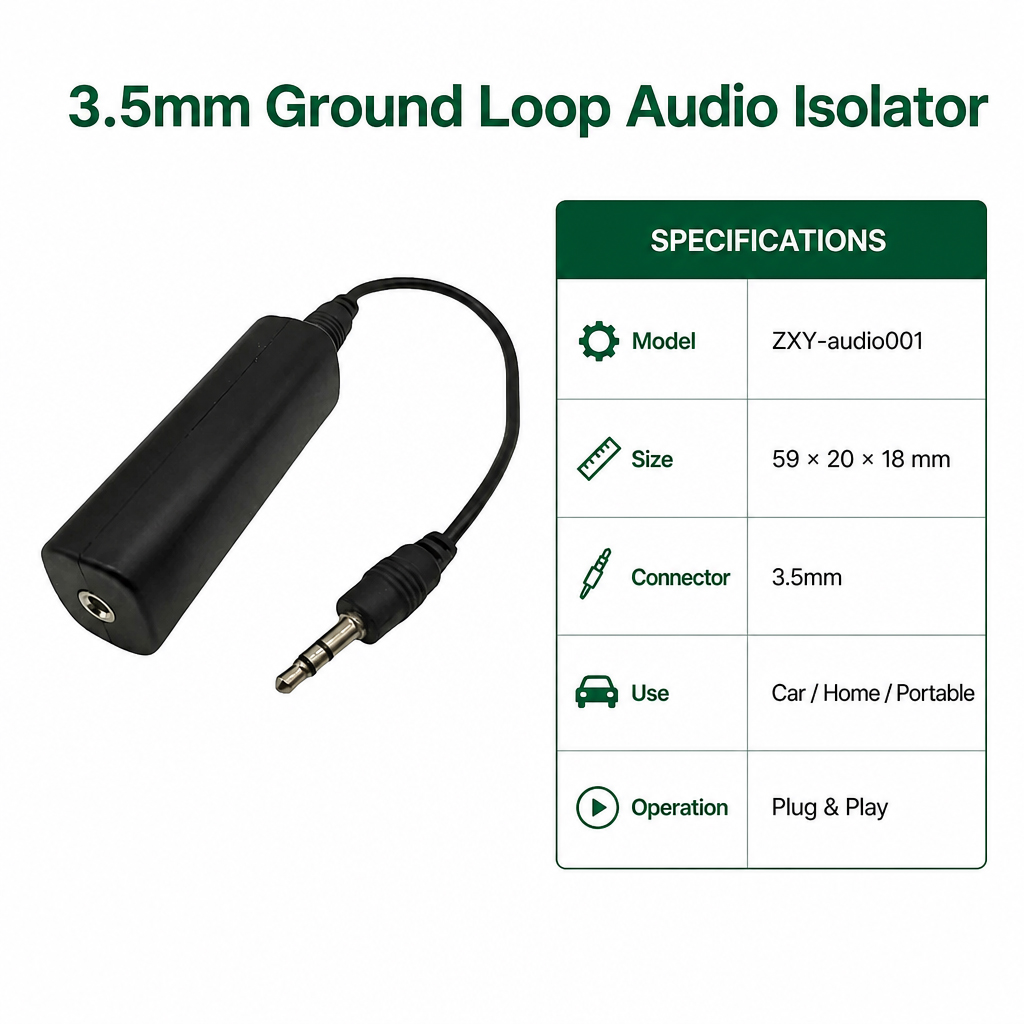

规格参数
| Application Category | Target Scenarios |
|---|---|
| Car Audio & In-Car Entertainment | AUX-in head units, aftermarket radios and car amplifiers fed |
| Home Stereo & Hi-Fi | Amplifiers, AV receivers, active |
| Portable & Mobile Devices | Smartphones, tablets, MP3 players, portable DAC |
| Desktop, Streaming & Content Creation | PC or laptop audio feeding monitor speakers |
| Commercial & Institutional Audio | Retail and showroom background music players |
以上仅展示已提供的参数。未列出的电气性能、测试条件、公差及定制选项，请联系工程师确认，以最终规格书为准。
产品图片与尺寸图
以下为已有产品图片及图纸，点击可查看原图。定制产品请以双方确认的规格书和图纸为准。
资料下载
该型号暂未上传可下载的规格书，可通过下方询盘索取参数表、尺寸图或样品资料。
选型与定制需求
为便于确认适用型号与规格，请尽量提供以下信息：
- 应用设备、用途、工作环境与温度范围。
- 按产品类型提供所需电感量、匝比或阻抗、工作频率、电压、电流及绝缘要求。
- 尺寸限制、安装方式、引脚间距，以及现有图纸或参考样品。
- 样品数量、预计批量与期望交期。
常见采购问题
关于 汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器 的常见采购问题。
汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器 是什么？
无源音频地环路噪声隔离器，利用音频隔离变压器切断地环路，适用于汽车音响、家庭立体声及AUX音频系统的嗡声抑制。
汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器 可以按我们的规格定制吗？
可以。深圳市志翔源电子有限公司 提供 OEM/ODM 服务，电感量、匝比、额定电流、磁芯材质、尺寸与引脚方式均可按您的图纸或样品定制。
汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器 的起订量与交期是多少？
起订量根据具体型号与订单数量协商确定。常规品交期 1-3 周，定制品 2-4 周，欢迎联系销售团队获取准确报价。
是否提供 汽车音响与家庭立体声地环路噪声隔离器，音频隔离变压器 样品？
提供。批量下单前可先申请样品评估，请将您的需求与收件信息发送给我们。
这款产品的型号是什么？

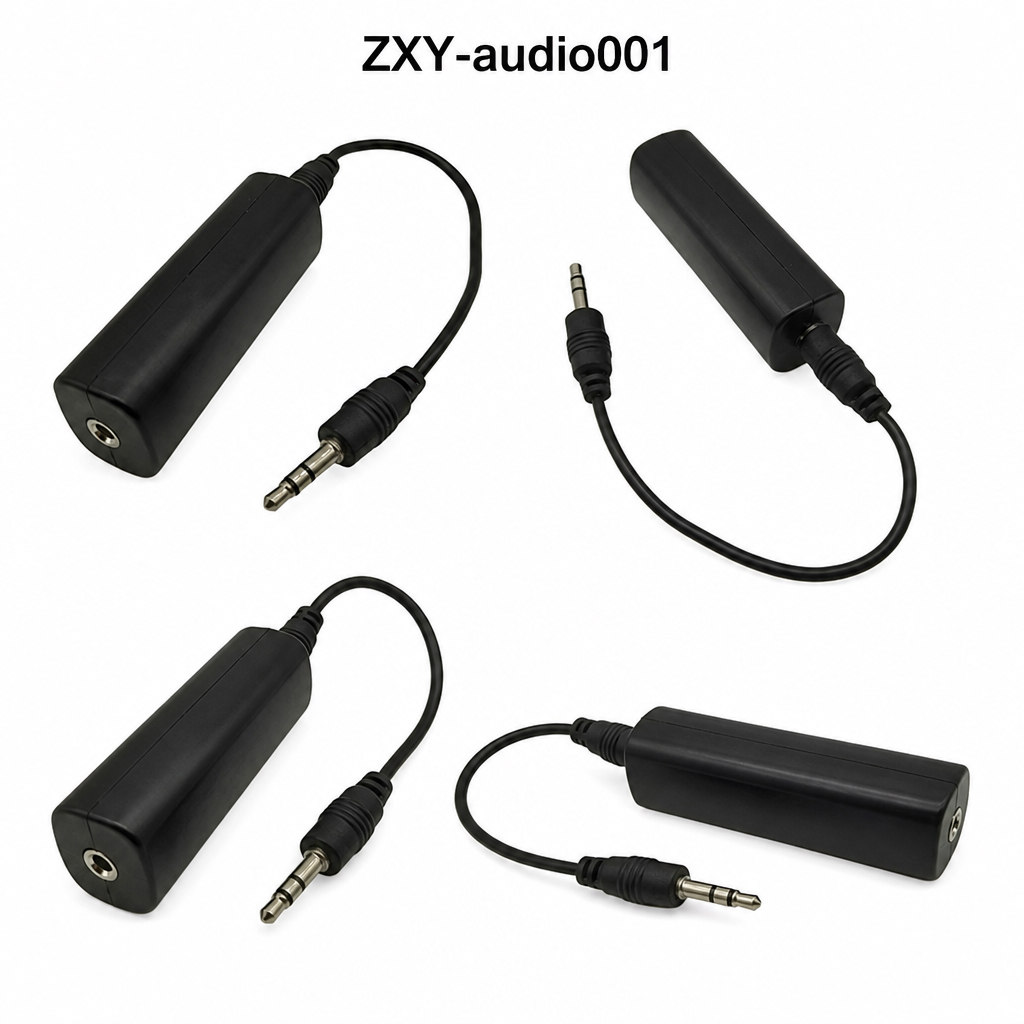

型号为 Ground Loop Noise Isolator。OEM 订单可指定自定义型号。
